Fine Pitch LED Display

FP Series

Pixel Pitch:

1.25mm

1.53mm

1.66mm

1.86mm

2mm


Fine Pitch LED Display has delicate colors and ultra-high contrast, providing lifelike images and videos with high-precision pixel pitch, delivering viewers an excellent visual experience. Fine pitch led display is widely applied in monitoring rooms, art exhibitions and other occasions that require high image or video quality. Fine pixel pitch led display could be high refresh rate, high frame frequency and no ghosting. Front service led module and design is for our fine pitch led video wall. 16 bit grey scale processing.

Share this:
Inquire
Fine Pitch LED Display
Fine Pitch LED Display
Fine Pitch LED Display
Fine Pitch LED Display
Fine Pitch LED Display
Fine Pitch LED Display

Features


Fine Pitch LED Display

01

Perfect Visual Performance

Fine pitch led display is excellent performance with vivid video & picture quality. Fine pixel pitch led display can be 3840Hz high refresh rate & 5000:1 contrast ratio to ensure the clarity and fluency of each frame.


02

Seamless Splicing and Fast installation

CNC processing with high precision die-casting aluminum cabinet. Internal wired solution and cabinet micro-adjustment technology for seamless splicing. Fine pitch led display has light-weight cabinet for easy & fast installation.

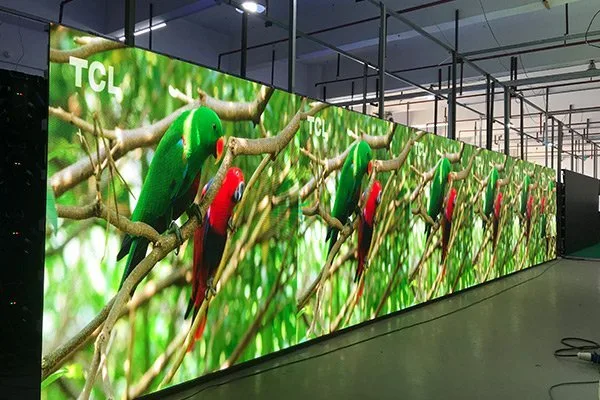

fine pitch led video wall
fine pixel pitch led display

03

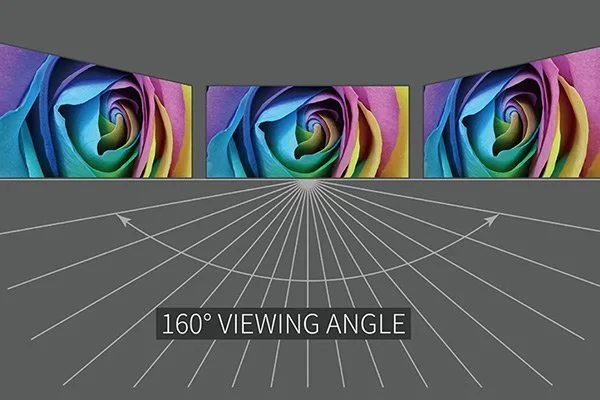

Large Viewing Angle

Fine pitch led display is up to 160 degree viewing angle. Viewers have better viewing experience with fine pitch led video wall.


04

Golden Ratio Screen for 2K, 4K, 8K, 16K

Our fine pitch led screen provdes cabinet ratio with 4:3 and screen for 16:9 golden ratio. Fine pitch pixels provide excellent image quality for close viewing distances.

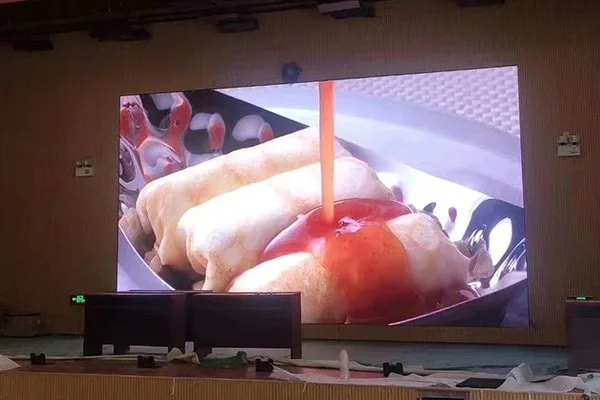

fine pitch led screen

Parameter

ModelP1.56P1.667P1.875
Pixel Pitch1.56mm1.667mm1.875mm
Module Size200×150mm200×150mm240×240mm
Module Resolution128×96 Pixel120×90 Pixel128×128 Pixel
Pixel Density409,600 Pixel/㎡360,000 Pixel/㎡280,000 Pixel/㎡
LEDSMD1515SMD1515SMD1515
Pixel Configuration1R1G1B1R1G1B1R1G1B
Gray Scale16 bit16 bit16 bit
Horizontal Viewing Angle160º160º160º
Vertical Viewing Angle160º160º160º
Driving Method1/30 scan1/30 scan1/32 scan
Brightness600-800nit600-800nit600-800nit
Frame Frequency60Hz60Hz60Hz
Refresh Rate1920/3840Hz1920/3840Hz1920/3840Hz
IP GradeIP43IP43IP43
Cabinet Size400×300mm400×300mm480×480mm
Cabinet Resolution256×192 Pixel240×180 Pixel256×256 Pixel
Weight6kg6kg7.5kg
Max Power Consumption130W/cabinet130W/cabinet200W/cabinet
Avg Power Consumption42W/cabinet42W/cabinet65W/cabinet
Input voltageAC110V/220V±10%
Storage Temperature-40℃-+65℃
Working Temperature-20℃-+55℃
Working RH10%—90%RH
MTBF≥10,000 hours
Lifespan≥100,000hours
Control MethodSynchronization
Operating SystemWinXP,Win2000,Vista, Win7/10
