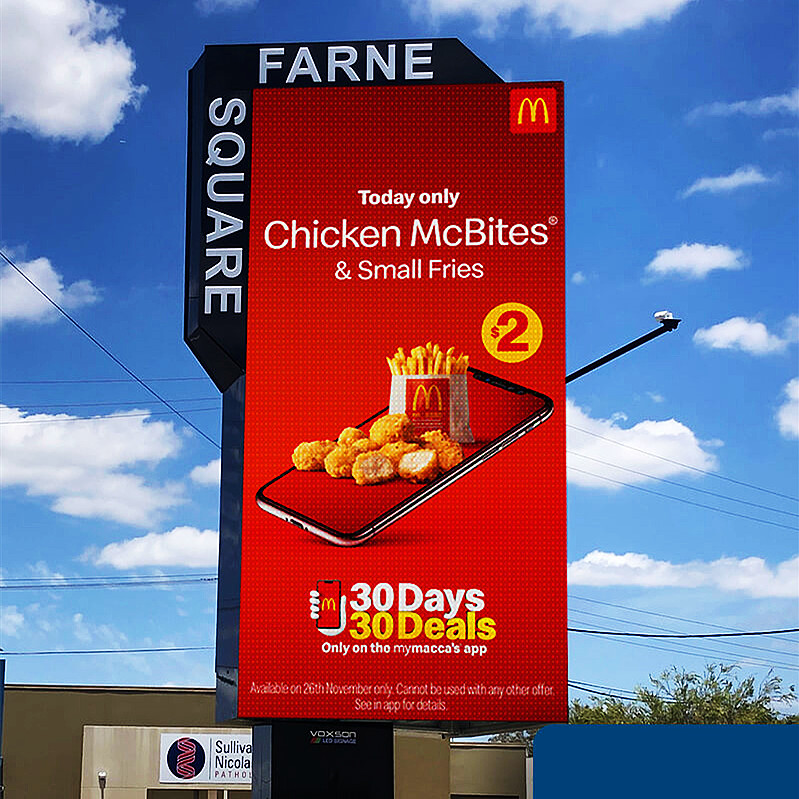

Outdoor LED Totem Display

LT Series

LT2.5, LT3, LT4, LT5, LT6


LED totem display has broad applications for retail advertising and digital signage advertising, which is also called retail displays. It's usually small and medium size but efficient advertising media. Totem led display could be one side or two sides with tempered-glass for better protection. Intelligent group management is also working for hundreds of totem led display. Generally, it could be freestanding design with base, wall-mounted or installed on poles.

Share this:
Inquire
Outdoor LED Totem Display
Outdoor LED Totem Display
Outdoor LED Totem Display
Outdoor LED Totem Display
Outdoor LED Totem Display
Outdoor LED Totem Display
Outdoor LED Totem Display
Outdoor LED Totem Display

Features


led totem display

01

High Brightness & Waterproof

Totem led screen employs high bright LED for outdoor waterproof applications. It's still vivid visual performance under direct sunlight. Tempered-glass protection is also available for protecting LED and vandilism.


02

Integrated solution for software & hardware

LED totem display is outdoor freestanding design with integrated solution for hardware. Built-in speaker and brightness sensor is for perfect audio & visual performance. It can be single side, dual-sides or more sides.

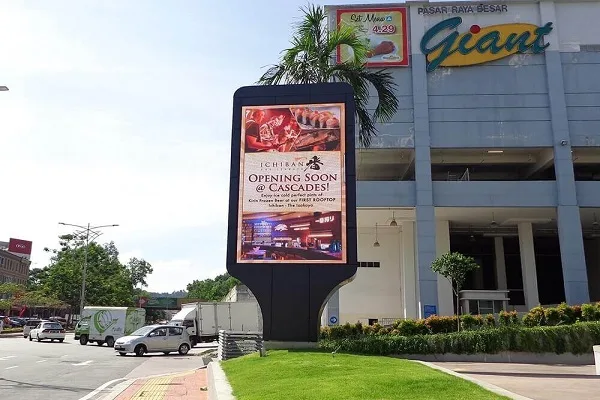

outdoor led screen

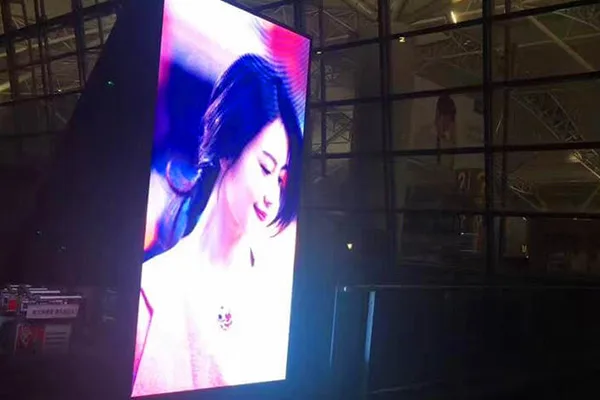

outdoor led display

03

User-Friendly and Easy Software

Totem led display is equipped with built-in WiFi controller for APP control. Software is user-friendly and extremely easy with APP. It's plug & play solution via USB too.


04

Fast Installation & Easy Maintenance

Totem led screen is fast installation with standing base. Front maintenance solution is preferred by most customers. It can make fast replacement with front service design in case of failure.

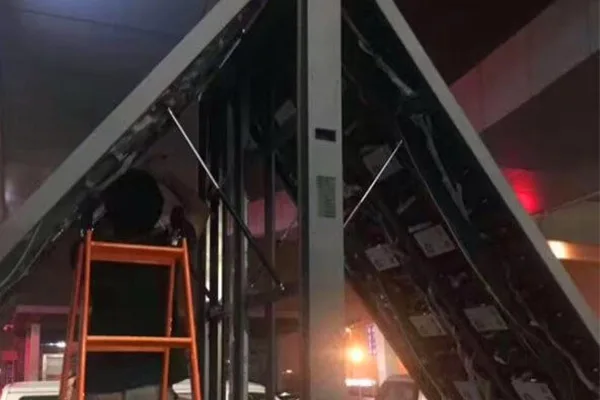

totem led display

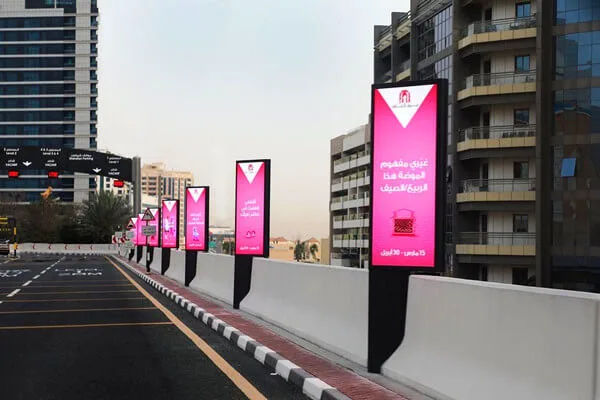

totem led screen

05

Intelligent Group Management System

4G controller is also available for wireless remote control solution. We can help build cloud for hundreds of led totem display with intelligent group management system. All programs for all totem led screen could be uploaded and changed at the same time via cloud. It's totally wireless and remote.


Parameter

1Pixel Pitch4mm5mm
2LEDSMD1921SMD2727
3Module Size256×128mm160×160mm
4Module Resolution64×32 Pixel32×32 Pixel
5Driving Method1/8 scan1/8 scan
6Screen Size1024×2048mm960×1920mm
7Screen Resolution256×512 Pixel192×384 Pixel
8Ingress ProtectionIP65IP65
9VoltageAC100-240VAC100-240V
10Max.Power1000W1000W
11Avg.Power300W300W
12Viewing Angle(H/V)140°/140°140°/140°
13Brightness5500 cd/m²5500 cd/m²
14Pixel Density6250040000
15Lifetime100,000 hours100,000 hours
16Processing16 bit16 bit
17Refresh Rate≥1920Hz≥1920Hz
18Frame Rate60fps60fps

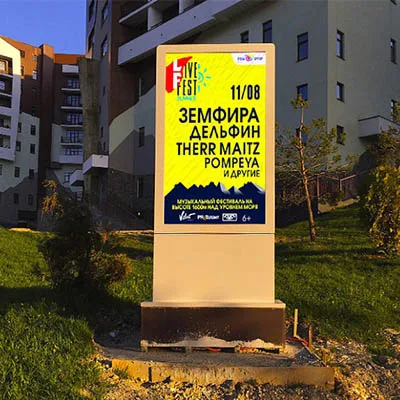

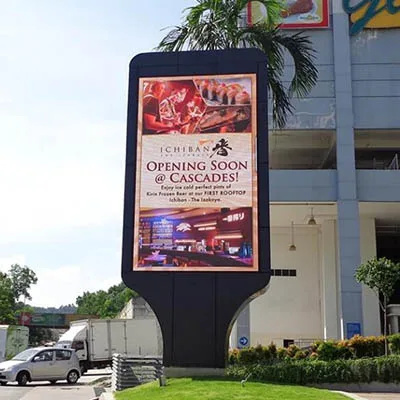

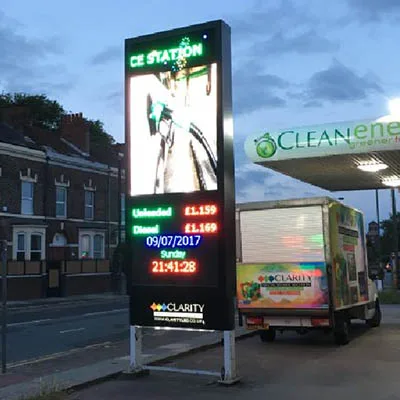

Cases
