Indoor Rental LED Display

RI Series

P2.6mm/P2.97mm/P3.91mm/P4.81mm

500×500mm/500×1000mm cabinet

Brightness: 1200cd/㎡


Indoor rental led display of HSC LED is 1200nits brightness. Indoor rental LED screens also could reach high contrast ratio with black SMD LED. LED stage screen is perfect for stage background and events. Indoor rental led screen is fast and easy installation with HSC LED unique cabinet design.

Share this:
Inquire
Indoor Rental LED Display
Indoor Rental LED Display
Indoor Rental LED Display
Indoor Rental LED Display
Indoor Rental LED Display
Indoor Rental LED Display
Indoor Rental LED Display
Indoor Rental LED Display
Indoor Rental LED Display
Indoor Rental LED Display

Features


Indoor Rental LED Display

01

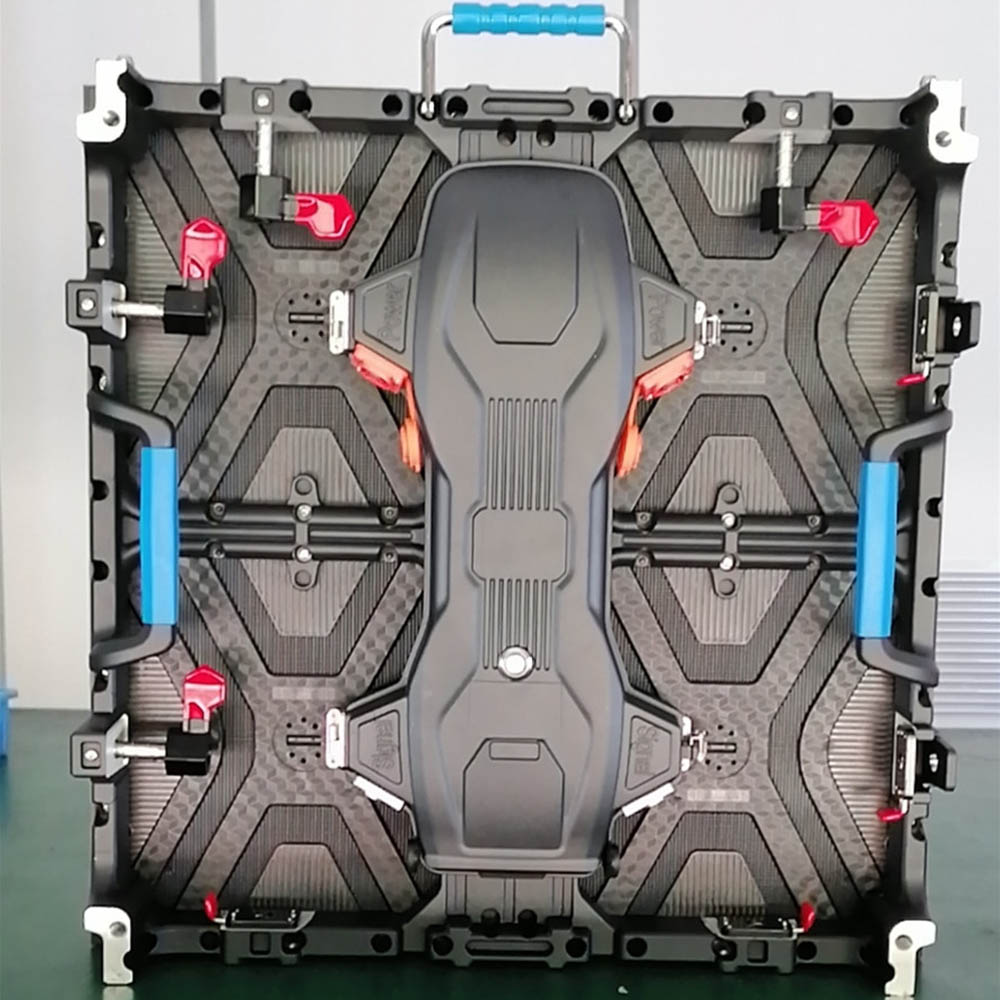

Fast Installation for Rental Indoor Led Display

Standard cabinet size: 500*500mm/500*1000mm Cabinet weight is only 8kg/pcs and 13.5kg/pcs Auto-lock system for fast & easy installation cost and time-saving with HSC LED unique cabinet.


02

Rental Indoor Led Display with Good Flatness & Seamless Splicing

HSC LED can offer good flatness and seamless splicing stage led screen. As we employ high precision die-casting aluminum cabinets. It can make perfect visual performance for

indoor rental led video wall.

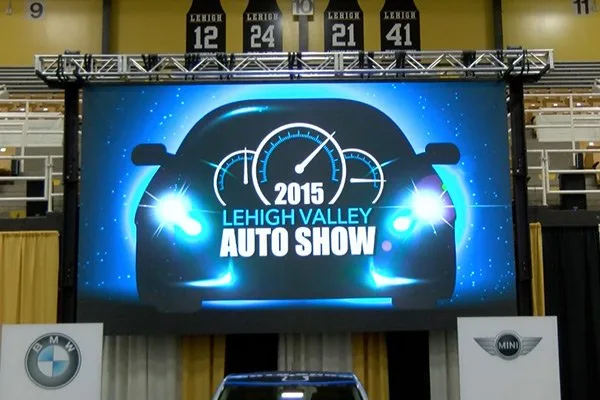

Indoor Rental LED Screen
High Contrast Ratio & Refresh Rate

03

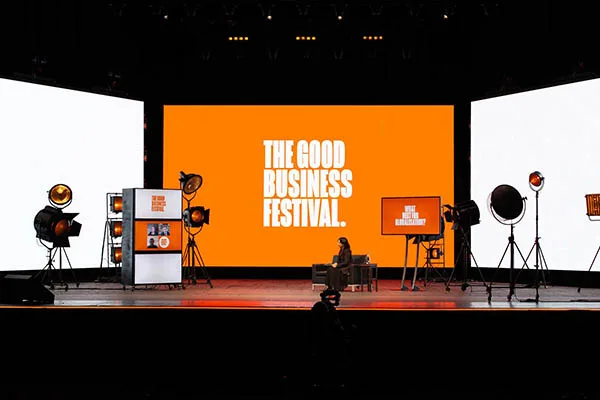

High Contrast Ratio & Refresh Rate of Indoor Rental Led Display

HSC LED rental indoor stage led screen could have 5000:1 contrast ratio with black SMD LED. The high refresh rate driving IC makes rental led video wall for 1920Hz/3840Hz refresh rate. 16 bit grey processing technology for excellent grey scale.


04

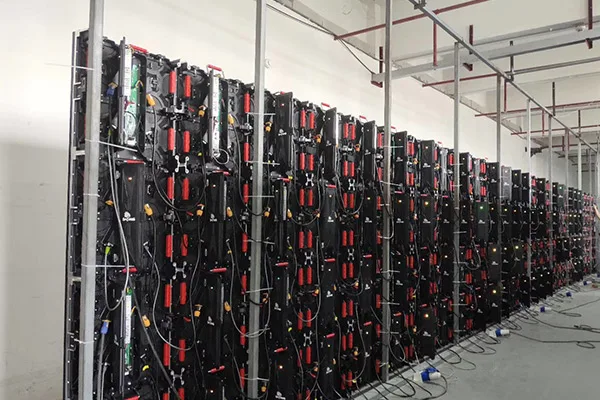

Front and Rear Maintenance for Rental Indoor Led Display

Front and rear maintenance for fast replacement. LED module for indoor rental led display can be removed from the front within 30 seconds. Easy and fast maintenance.

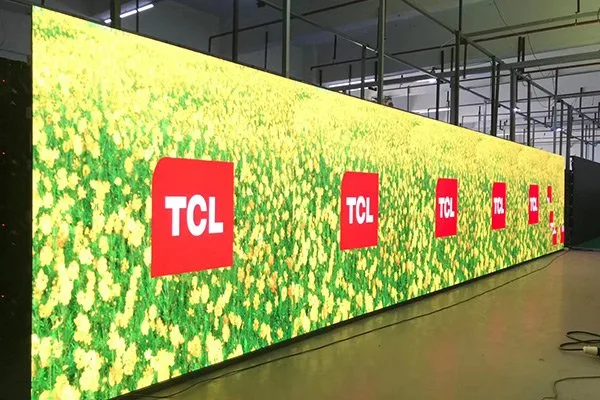

Indoor Rental LED Display Sale

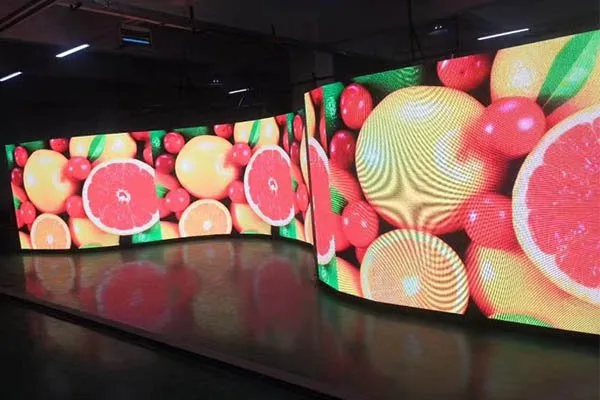

Inner and Outer Arc.jpg

05

Inner and Outer Arc of Indoor Rental Led Display

Both for 500*500mm and 500*1000mm led panel, all of them can be inner or outer arc for 15 degree. It can be curved and S-wave shapes for creative design and installations.

06

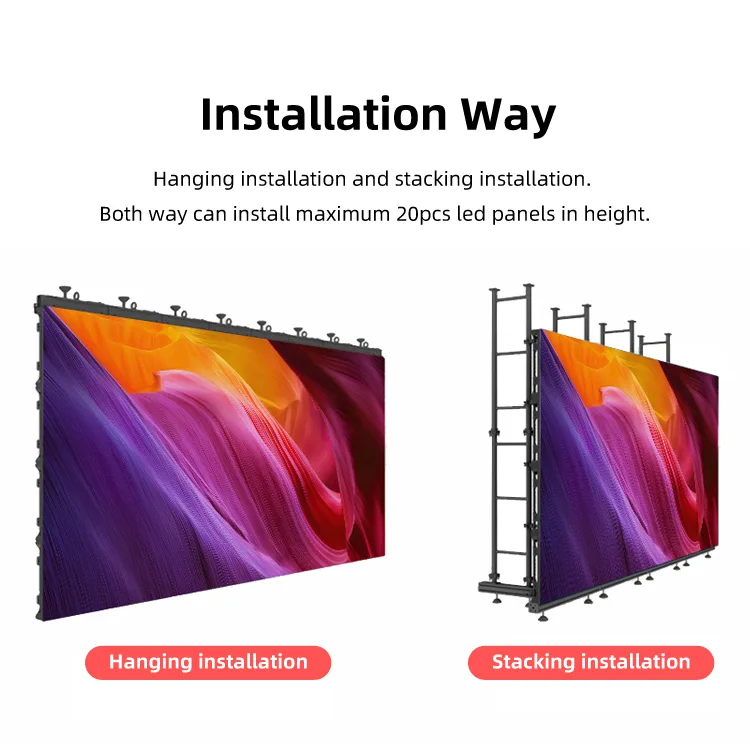

Installation Way of Indoor Rental Led Display

For indoor rental applications and events, led video wall is usually for hanging and stacking installation. Both of these ways, the maximum height is 20pcs with 10m. It requires hanging bar for hanging installation and supporting structure for stacking installation.

Indoor Rental LED Display Installation Way.png

Parameter

Parameter



ModelP2.6P2.97P3.91P4.81
Pixel Pitch2.6mm2.97mm3.91mm4.81mm
Grey Level:147,456112,89665,53643,264
LEDSMD2121SMD2121SMD2121SMD2121
Module Size250×250mm250×250mm250×250mm250×250mm
Cabinet Size500×500mm500×500mm500×500mm500×500mm
Cabinet TypeDie-Casting Aluminum
Weight28kg/㎡28kg/㎡28kg/㎡28kg/㎡
Brightness1,300 nits1,300 nits1,300 nits1,300 nits
Scanning1/28 Scan1/28 Scan1/16 Scan1/13 Scan
Refresh Rate1920/3840Hz1920/3840Hz1920/3840Hz1920/3840Hz
Viewing AngleH: 160°; V: 160°H: 160°; V: 160°H: 160°; V: 160°H: 160°; V: 160°
Max. Power Consumption550W/㎡580W/㎡550W/㎡580W/㎡
Ave. Power Consumption160W/㎡180W/㎡160W/㎡180W/㎡
Input VoltageAC100-240VAC100-240VAC100-240VAC100-240V
MTBF≥10,000 hrs≥10,000 hrs≥10,000 hrs≥10,000 hrs
Operating Temperature-30 ℃ ~ +60 ℃-30 ℃ ~ +60 ℃-30 ℃ ~ +60 ℃-30 ℃ ~ +60 ℃
Operating Humidity10%~75%10%~75%10%~75%10%~75%
IP Grade(Front/Rear)IP31IP31IP31IP31
