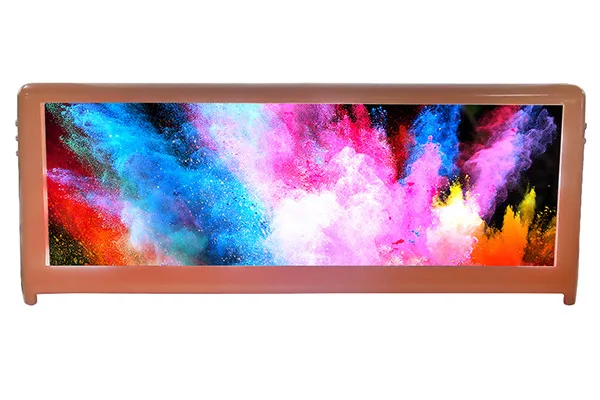

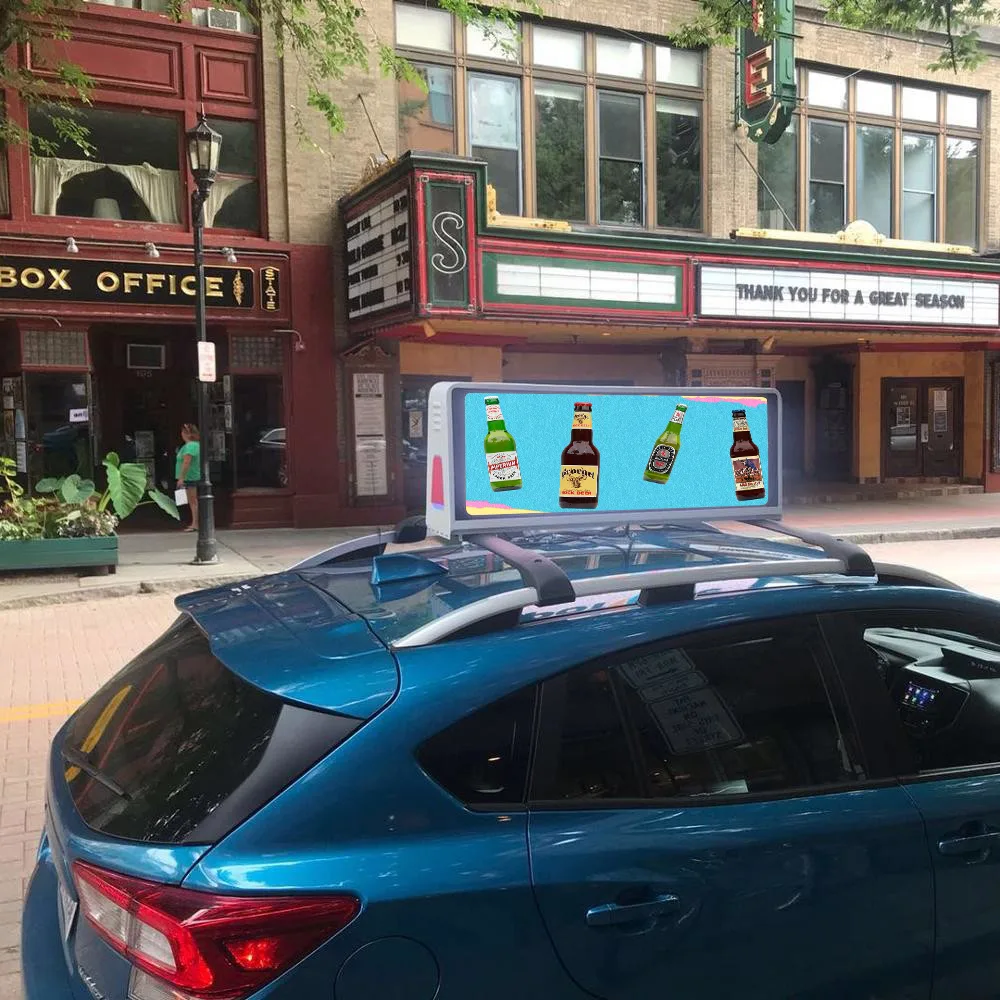

HD Full Color Taxi Top LED Display

TD Series Taxi LED Display

TD2.5, TD3.33, TD5

Taxi top led display, also called taxi roof led display or taxi top led sign, is a a new type of electronic media platform that display advertising with elegant and attractive appearance. Taxi top led display is mainly installed on cars, taxis, buses and other vehicles as a terminal carrier. Different from traditional LED display, our taxi roof LED display features low energy consumption, waterproof Protection, easy Installation and Maintenance that can be totally for the long-term usage.

Share this:
HD Full Color Taxi Top LED Display
HD Full Color Taxi Top LED Display
HD Full Color Taxi Top LED Display
HD Full Color Taxi Top LED Display
HD Full Color Taxi Top LED Display
HD Full Color Taxi Top LED Display
HD Full Color Taxi Top LED Display
HD Full Color Taxi Top LED Display

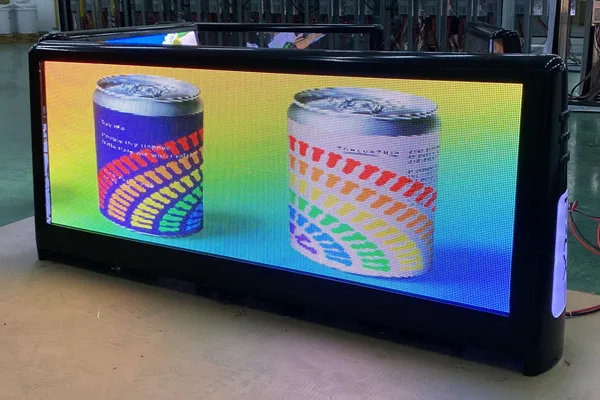

Taxi LED Screen

01. High Resolution & Clarit

Outdoor PH2.5mm is available with highest resolution

Outdoor PH3.33mm is the best ratio for price & clarity

02. High Brightness

Different pixel pitch available: 2.5mm : 5000 nits; 3.33mm : 4500 nits; 5mm : 5500 nits.

5500 nits for perfect vivid performance even under direct sunlight.

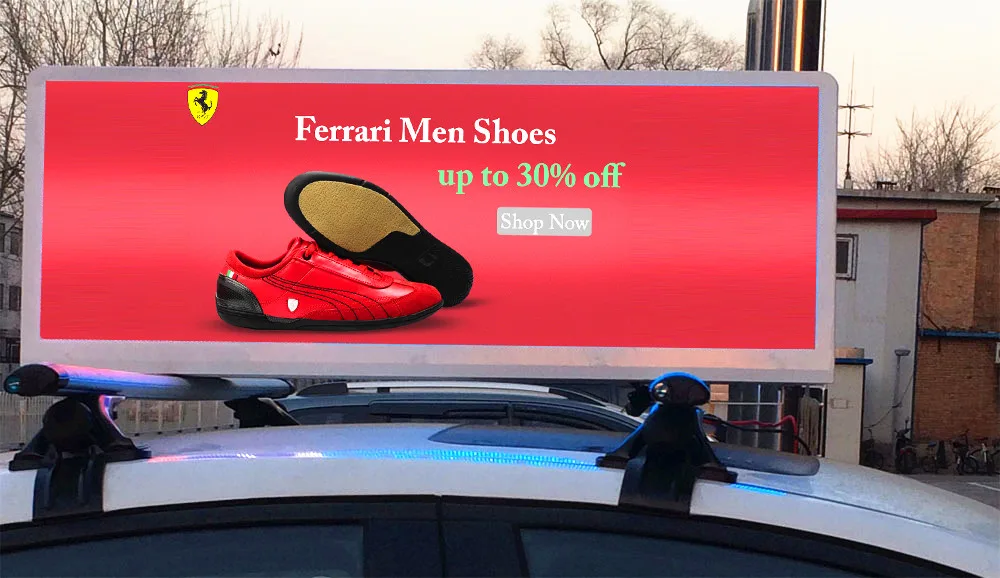

Taxi LED Sign
HD Full Color Taxi Top LED Display

03. Waterproof Protection

Ingress protection rating up to 56, our taxi roof LED display is totally weatherproof and shockproof.

featuring electrostatic prevention and lighting protection to make it more durable for the long-term usage.

04. Easy Installation and Maintenance

Our taxi top-mounted LED display combines a modular design with different parts, so we can install it easily and perform maintenance quickly. You can also easily insert and remove the SIM card to change the control method.

For the installation of displays, our roof LED display devices can be easily installed on different roofs by using roof racks. All installation & replacement could be done via screwdriver; no need professional device.

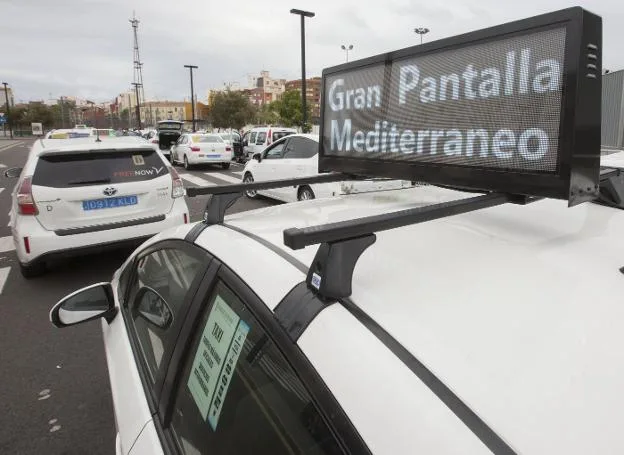

Taxi Top LED

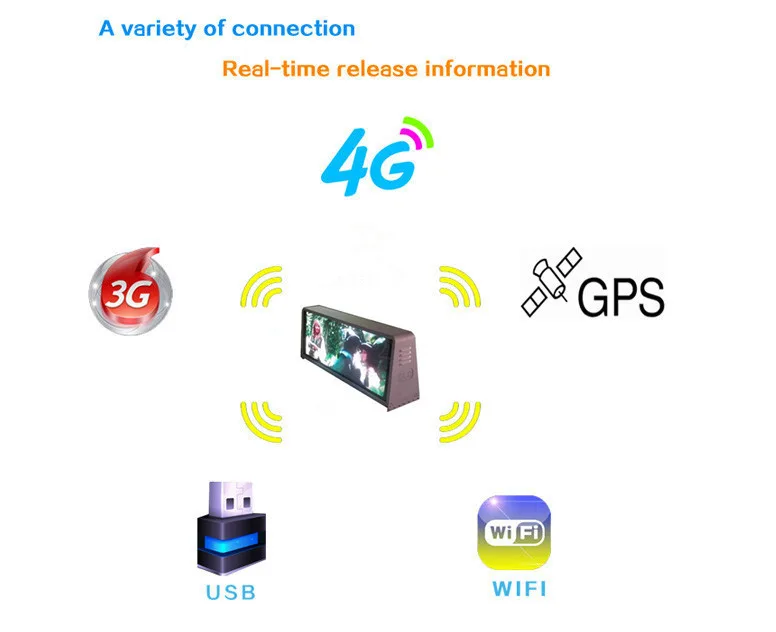

4G Taxi LED Display

05. Intelligent Asynchronous Control

Cloud group-management System

GPS real-time tracking

Advertising Management System

4G/WiFi/USB control

06. Unique Design on Power & Heating Dissipation

Extremely low Power Consumption.

Smart Power Supply Management.

Over-voltage protection

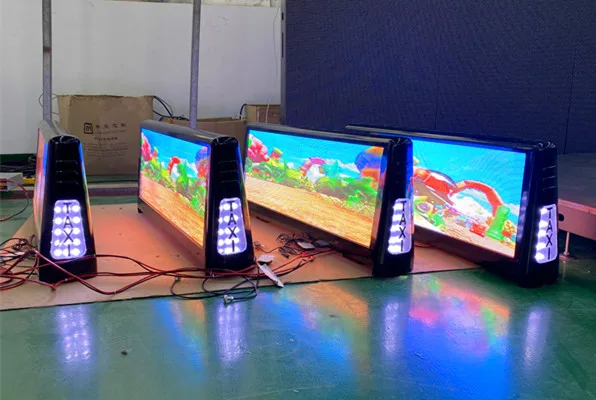

Car Roof LED Display

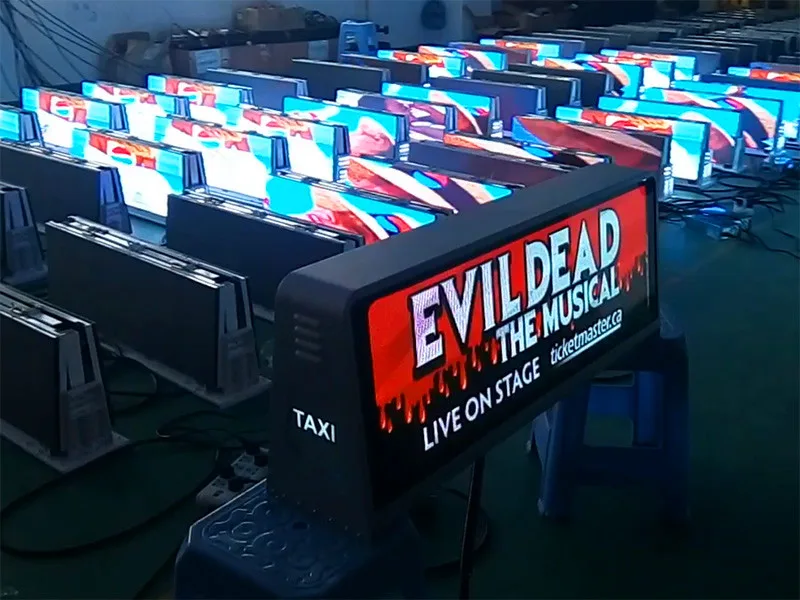

Car Top LED Display

07. Target Your Location

In different locations, different type cars, playing the same pictures. No matter where you are going, the GPS function will show your excat location.


Pixel Pitch2.5mm3.33mm5mm
LED TypeSMD1921SMD1921SMD2727
Pixel Density160,000 dot/㎡90,000 dot/㎡40,000 dot/㎡
Module Size160×160mm320×160mm160×160mm
Screen Size960×320mm960×320mm960×320mm
Screen Resolution384×128 Pixel288×96 Pixel192×64 Pixel
View Angle140°(H)/140°(V)140°(H)/140°(V)140°(H)/140°(V)
Scan1/16 Scan1/12 Scan1/8 Scan
Power Supply InputDC9--24VDC9--24VDC9--24V
Max Consumption480w400w450w
Average Consumption180w120w150w
Refresh Rate≥1,920Hz≥1,920Hz≥1,920Hz
Optimal Viewing Distance1--20M3--50M3--50M
Life Span100,000 Hours100,000 Hours100,000 Hours
MTBF10,000 Hours10,000 Hours10,000 Hours
Control MethodAsychronousAsychronousAsychronous
Operating Temperature.-40°~+75°.-40°~+75°.-40°~+75°
Working Humidity10%–90%RH10%–90%RH10%–90%RH
Protection RatingIP65IP65IP65
Power Protectionover-temperature/over-current/over-temperature/over-current/over-temperature/over-current/
over-voltage protectionover-voltage protectionover-voltage protection
Screen Weight26kg19kg23kg

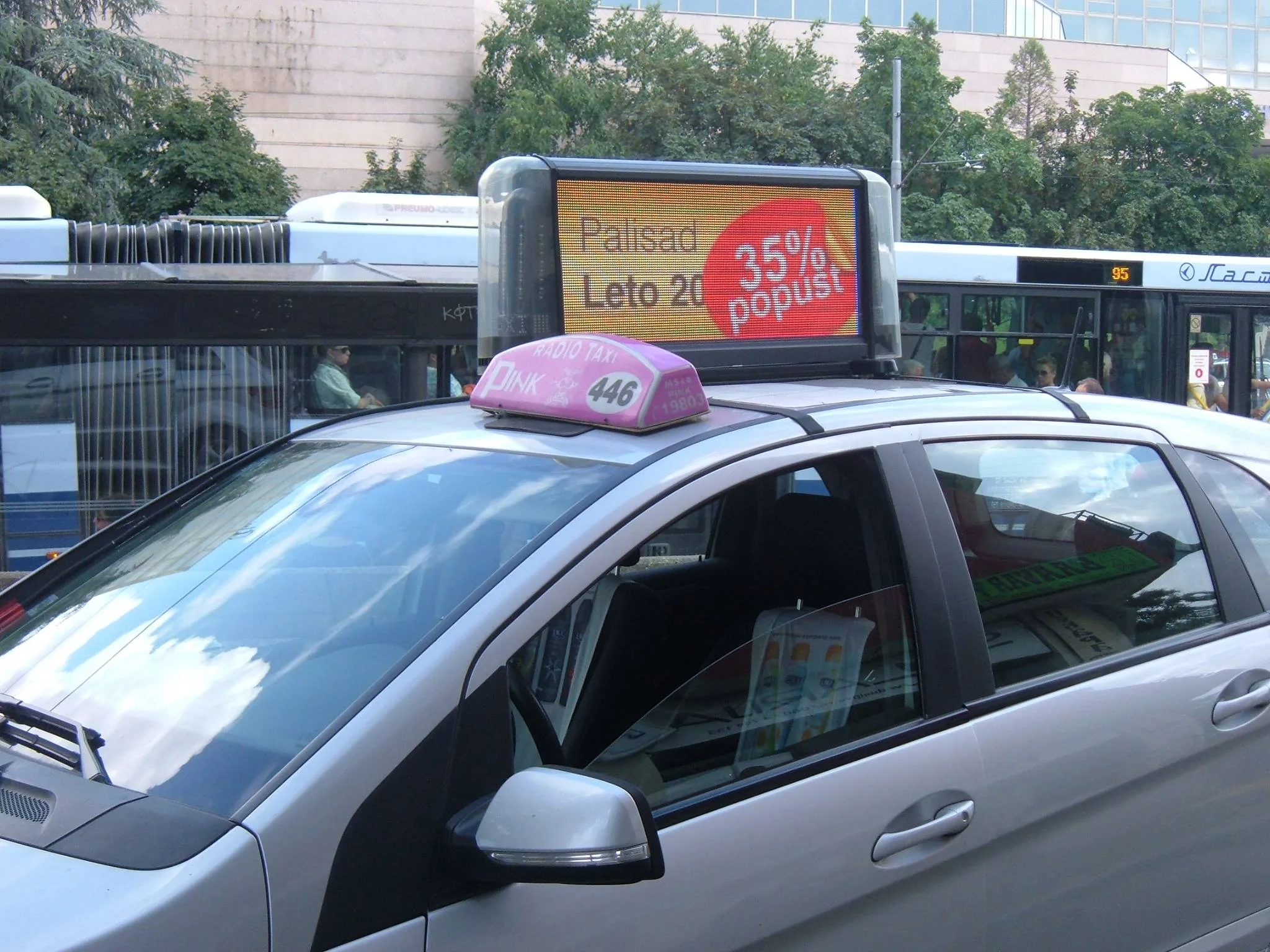

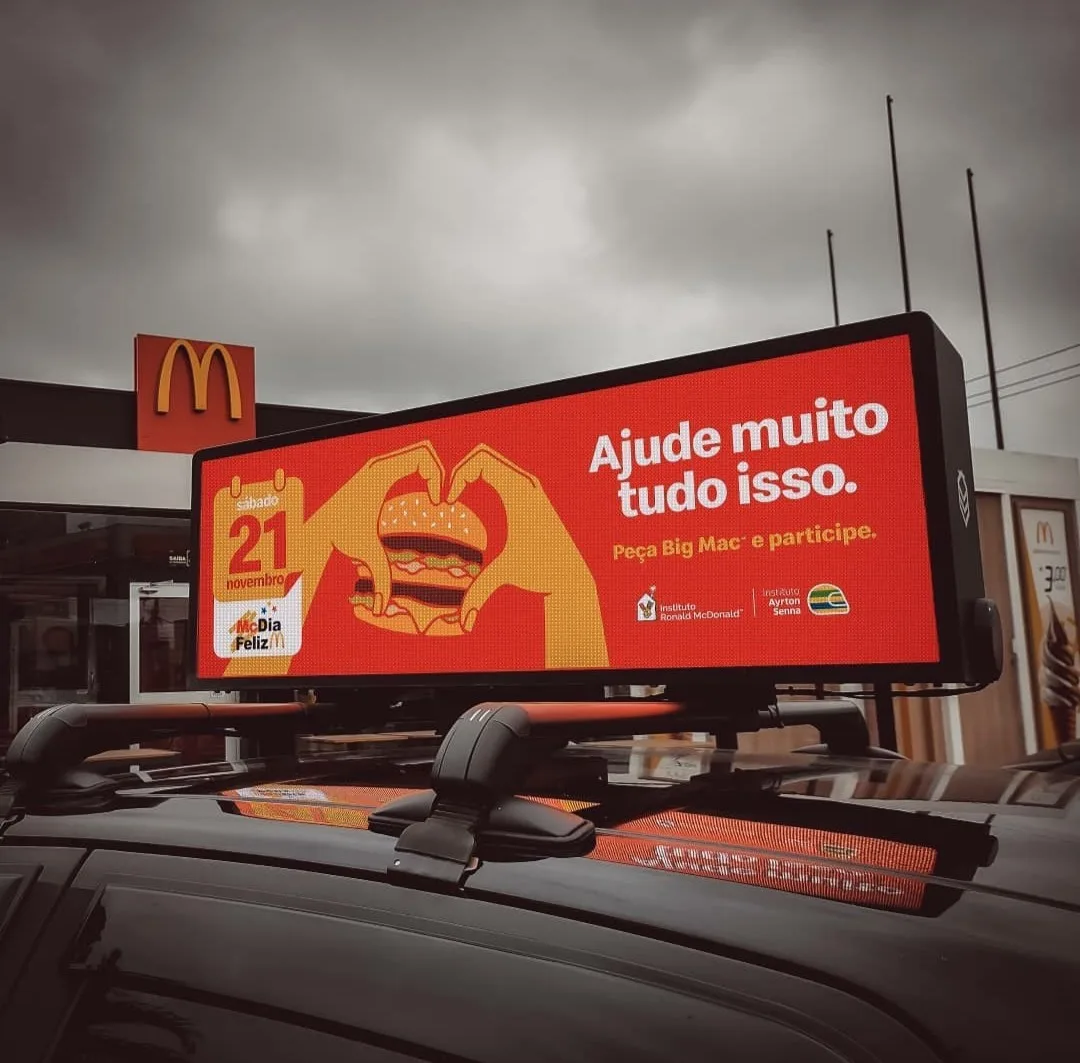

taxi roof led displayTaxi top led signTaxi led display

Product Documents


Q: What is a taxi top LED display?

A: An LED taxi top display also know as LED taxi topper/taxi top advertising sign/taxi roof LED screen is a dual-side flat panel display, which uses an array of true RGB color high brightness light-emitting diodes as pixels for a digital or video display. The LED screen unit is installed on top of a taxi rooftop and is powered by the vehicle battery.

Q: Do I need to drill holes in the roof of the car to install led display?

A: No need. Roof rack is mounted with car side window and can help avoid drilling holes on the car. It won't have any damage when taxi screen is removed.

Q: Can the display handle extreme weather?

A: Yes, Our taxi top led display is designed to the IP65 to protect for water & dust ingress. Its thermal management system allows for operation in temperatures between -40°C ~ +75°C.

Q: What is the most common pixel resolution taxi top LED display used?

A: HSC LED provides different options of pixel pitch (P2.5, P3.33, P5) for our clients, but the most common is P2.5 taxi top led display since it provides very bright high resolution video and static images. You'd better consider the most suitable display before place an order.
