Front Service Aluminum LED Display

FA Series

Pixel Pitch: P6.67mm, P8mm, P10mm

Front & rear service aluminum led display


Front service aluminum LED display is designed for outdoor big applications, with high protection level and environment-friendly features.

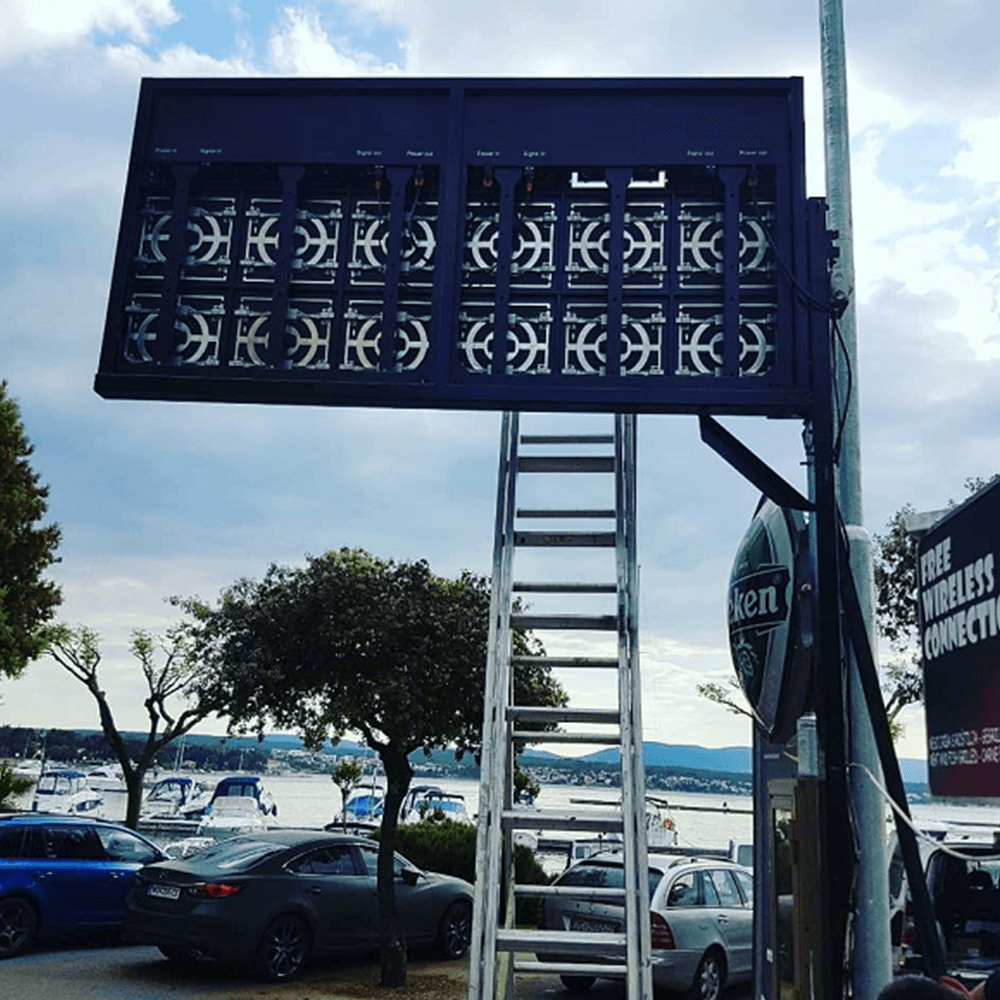

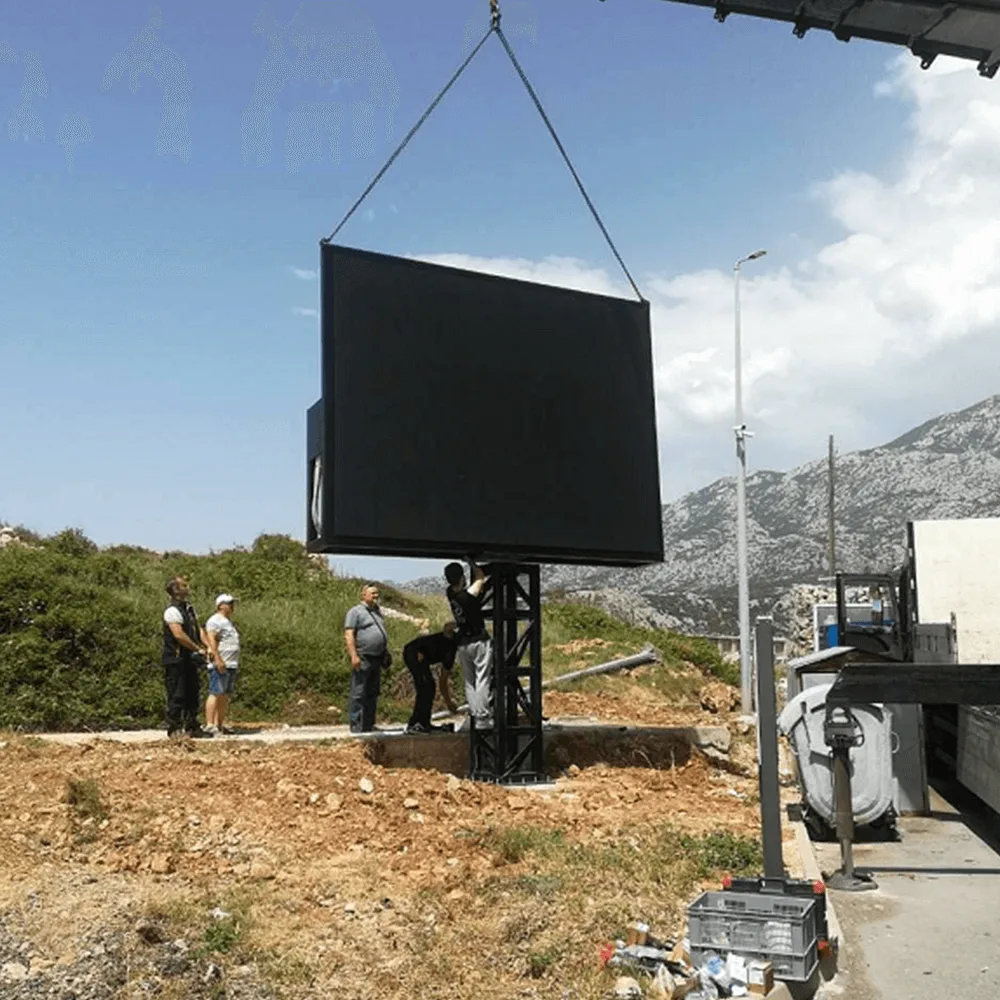

Front service aluminum LED display is for commercial buildings, airports, city's landmark area, exhibition center and other outdoor spaces.

Share this:
Inquire

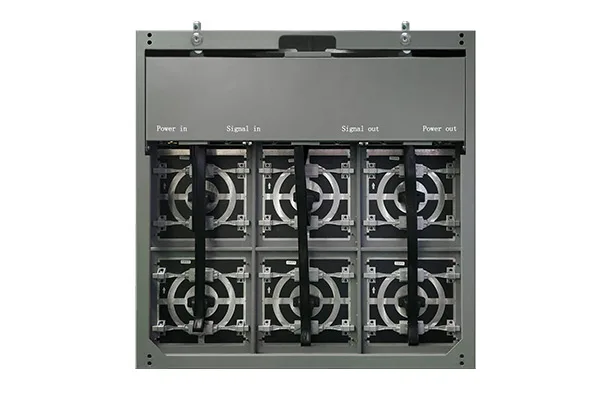

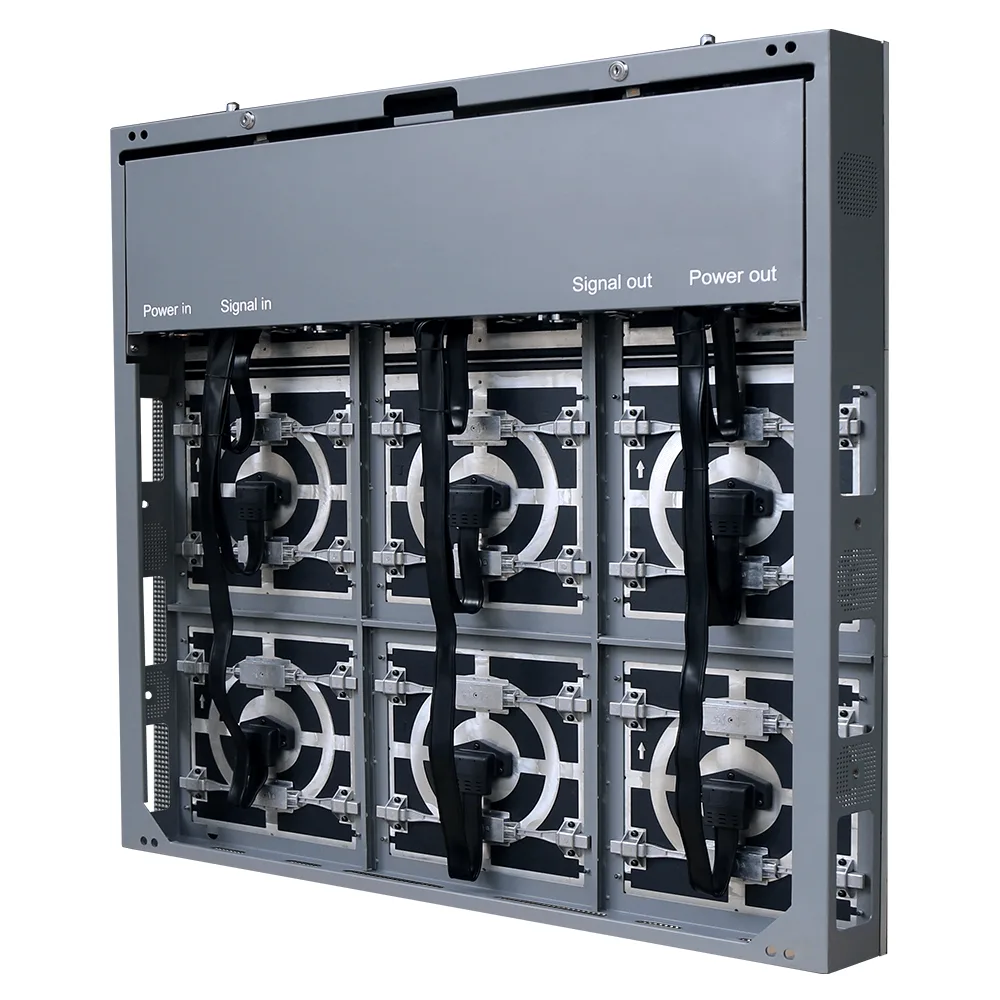

Front Service Aluminum LED Display
Front Service Aluminum LED Display
Front Service Aluminum LED Display
Front Service Aluminum LED Display
Front Service Aluminum LED Display
Front Service Aluminum LED Display
Front Service Aluminum LED Display
Front Service Aluminum LED Display
Front Service Aluminum LED Display
Front Service Aluminum LED Display

Features

Front Service Aluminum LED Display

01

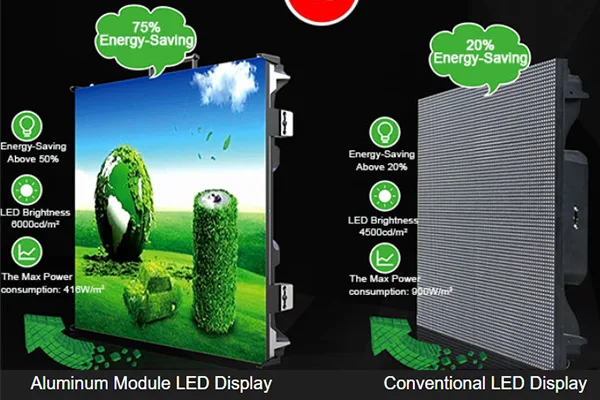

75% Energy-Saving with Low Power Consumption

Front service aluminum LED display is to divide R,G,B for power supply solution for reducing consumption.

The heat-generation is small and aluminum substrate is fast heat-dissipation.

75% energy-saving could be done under such conditions for high brightness and contrast ratio with HSC LED front service aluminum LED display screen.

02

Excellent Fireproof Performance

Our front service aluminum LED display panel is fireproof, high temperature durability and fast heat-dissipation with full aluminum material.

The protection shade of front service aluminum LED video display is VO standard fireproof material.

It can't be flamed to work under high temperature environment with our unique front service aluminum LED display screen.

Aluminum LED Display
Aluminum LED Display

03

Dustproof and Waterproof IP68 Protection

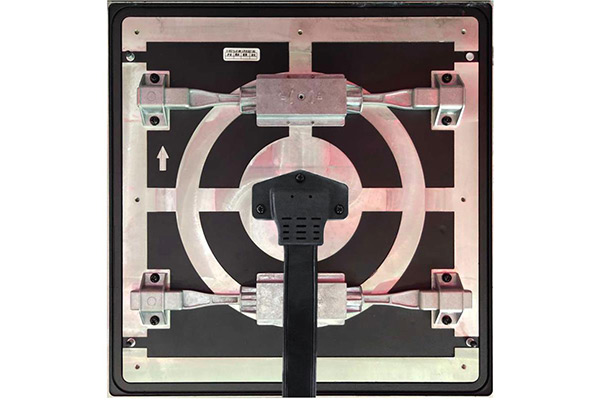

Aluminum substrate is to adopt full sealed design, to match 3-in-1 waterproof connector.

It's our special and unique technology for front service aluminum LED display. The lamp-leg of front service aluminum LED screen is double glue waterproof technology.

04

Strong Adaptability

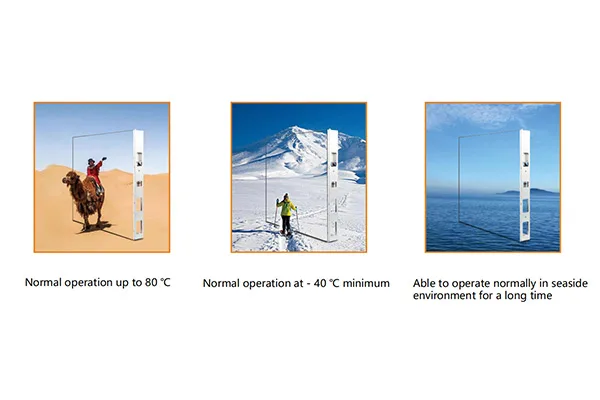

The front service aluminum LED display is to adopt fully sealed die-casting aluminum. As substrate

protecting is its inner components, making the display to withstand high temperature and low temperature, anti-corrosion.

It has a strong adaptability in environment and can work whole of day in outdoor, being super stability and high protection for HSC LED front service aluminum LED screen.

Aluminum LED Display
Aluminum LED Display

05

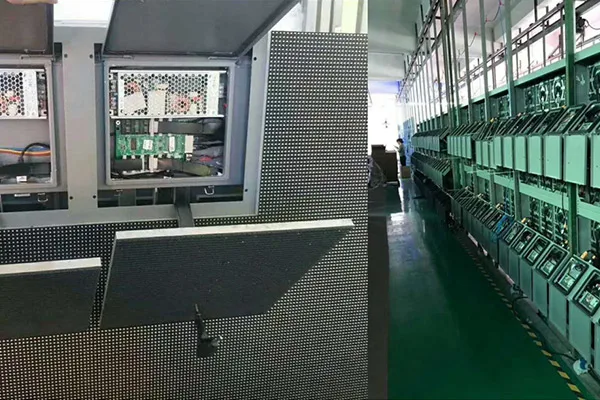

Front & Rear Maintenance

Front service aluminum LED display is available for front & rear maintenance.

It makes it much easier and cost-saving for HSC LED front service aluminum LED display.

Parameter

ModelP6.67P8P10
Pixel Pitch6.67mm8mm10mm
LED TypeSMD2727SMD2727SMD2727
Pixel Type1R1G1B1R1G1B1R1G1B
Module Size320×160mm320×160mm320×160mm
Module Resolution48×48 Pixel40×40 Pixel32×32 Pixel
Pixel Density22,47715,62510,000
Scan1/6 Scan1/5 Scan1/2 Scan
Brightness≥5500nits≥5500nits≥6500nits
View Angle140° (H)/120°(V)140° (H)/120°(V)140° (H)/120°(V)
Refresh Rate≥1920Hz≥1920Hz≥1920Hz
Input VoltageAC100-240VAC100-240VAC100-240V
Grey Level16 Bit16 Bit16 Bit
MTBF≥ 10,000 hs≥ 10,000 hs≥ 10,000 hs
Operating Temperature-40 ℃ ~ +80 ℃-40 ℃ ~ +80 ℃-40 ℃ ~ +80 ℃
Operationg humidity10%~75%10%~75%10%~75%
IP GradeIP68IP68IP68
