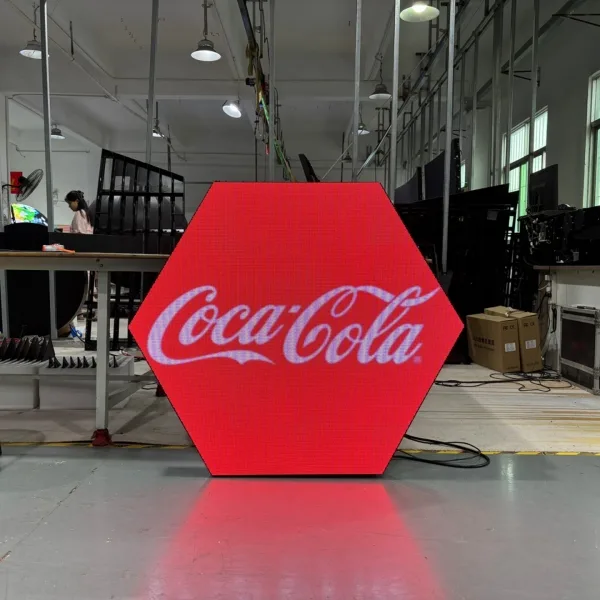

Hexagon LED Screen

HL Series

Pixel Pitch: P1.25mm, P2mm, P2.5mm, P3mm, P4mm, P5mm

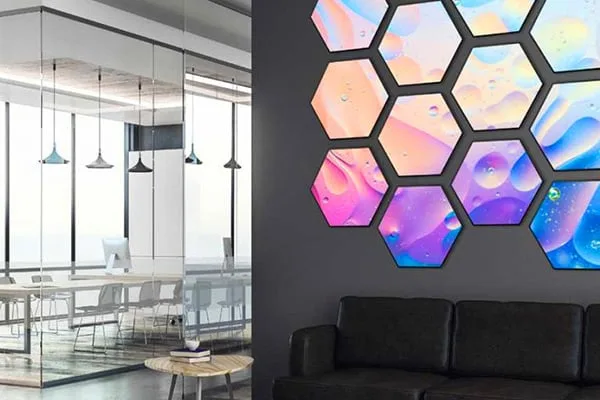

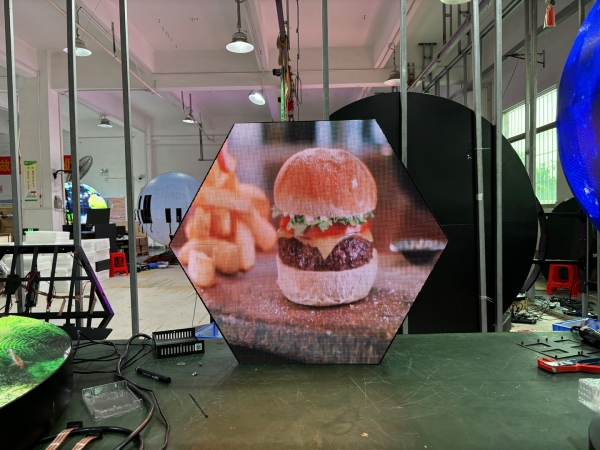

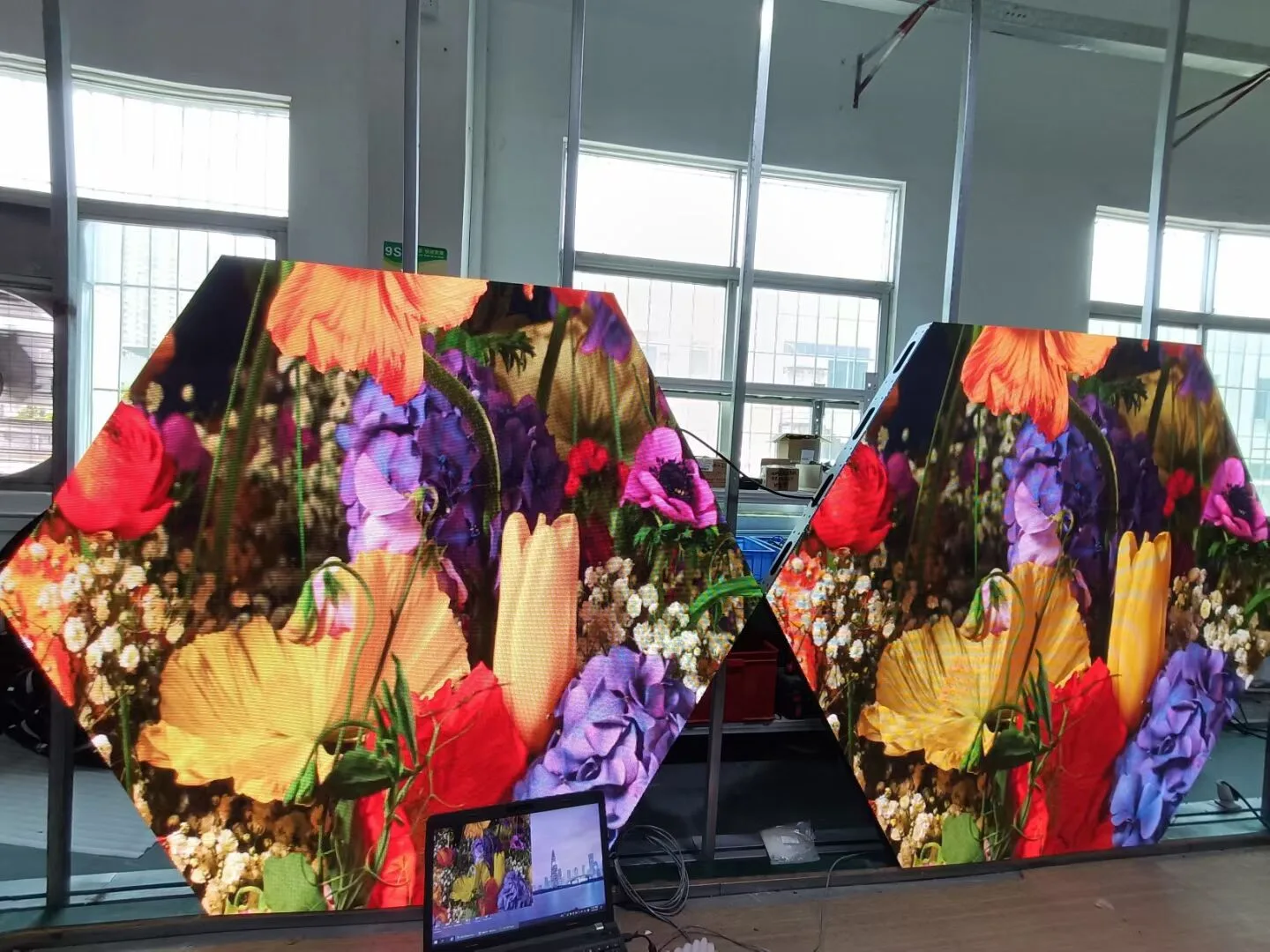

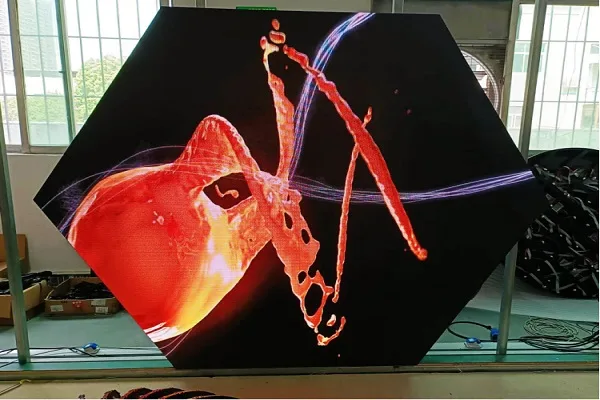

Hexagon LED display, which is a kind of led display with 6 sides, is perfect for creative design & solution, such as retail advertising, exhibitions, stage background, DJ booth, events, bars and etc.

Hexagon LED display panel is tailored for lots of different shapes and sizes. HSC LED accepts custom solution for hexagon led screen.

Pentagon led display is also available for us.

Features

	01. Unique Hexagon Design for Magic & Fantasy Effect Hexagon led video display has special and creative shapes. It's magic decoration and effect with such hexagon led video screen. Hexagonal led display has 6 same side length.

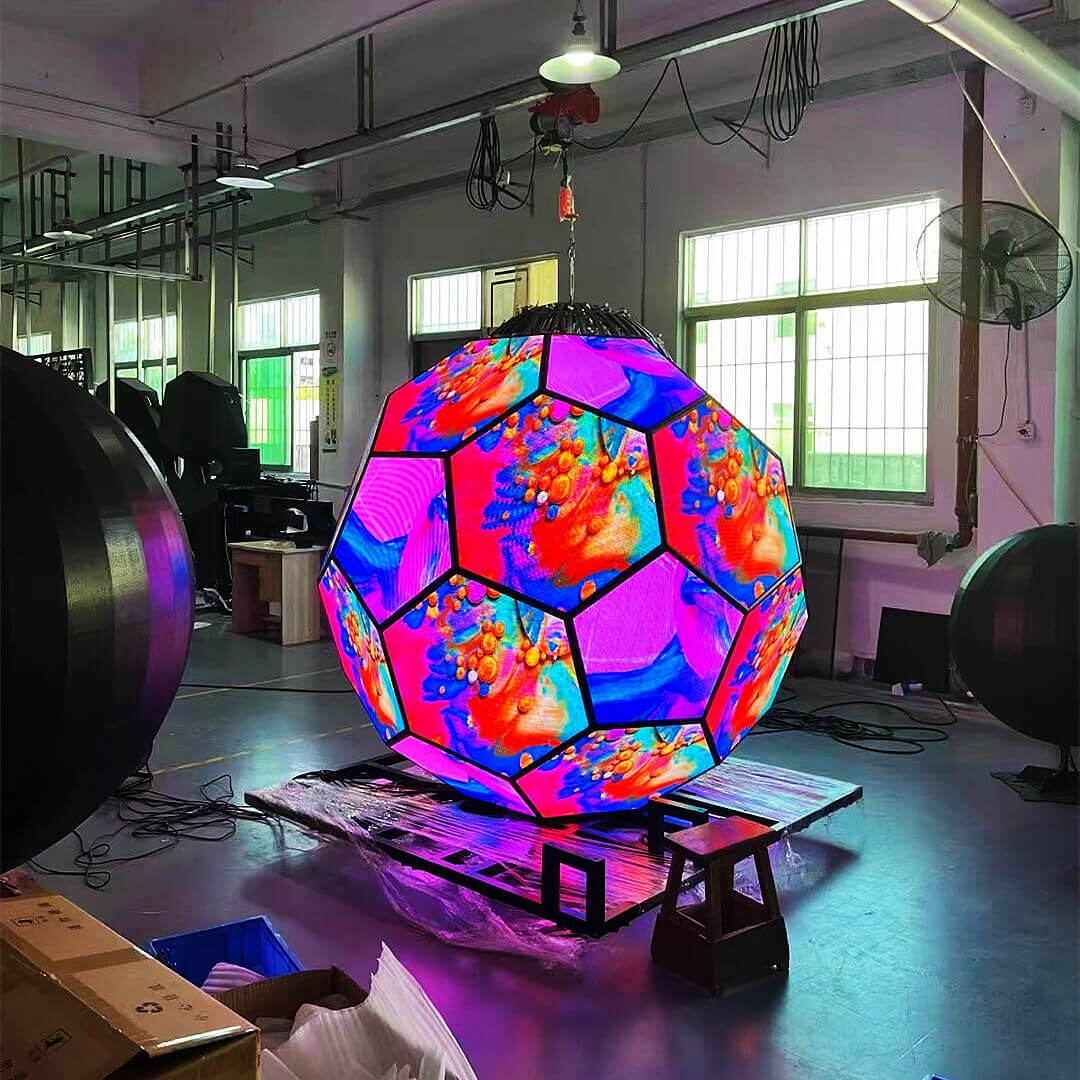

02. Creative Design & Custom Size Hexagon shape led display is working for custom solution, such as special shape and sizes. HSC LED makes your ideas into reality with our creative hexagon led screen panel. It has several pitches and dimensions for our hexagonal led display.
	03. Easy Control & User-friendly Software Synchronous & asynchronous mode Live broadcasting & autoplay without PC WiFi & USB control; Plug & Play solution via USB disk HDMI is also available for controllers and processor Round led display screen can work 24/7 hours

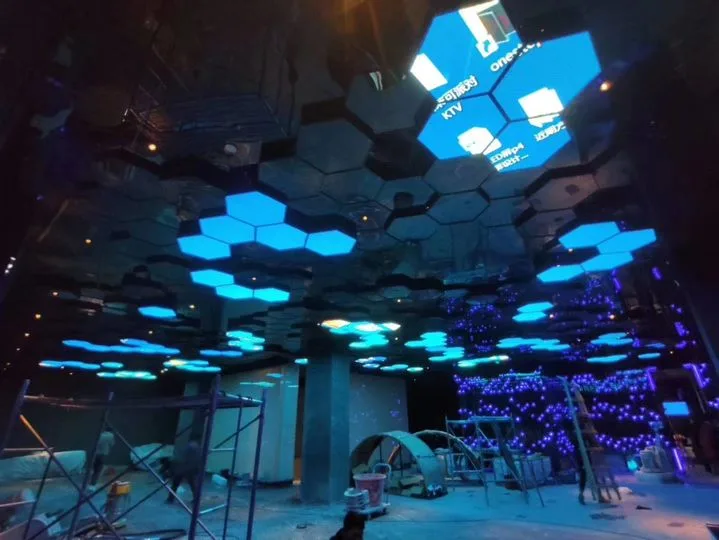

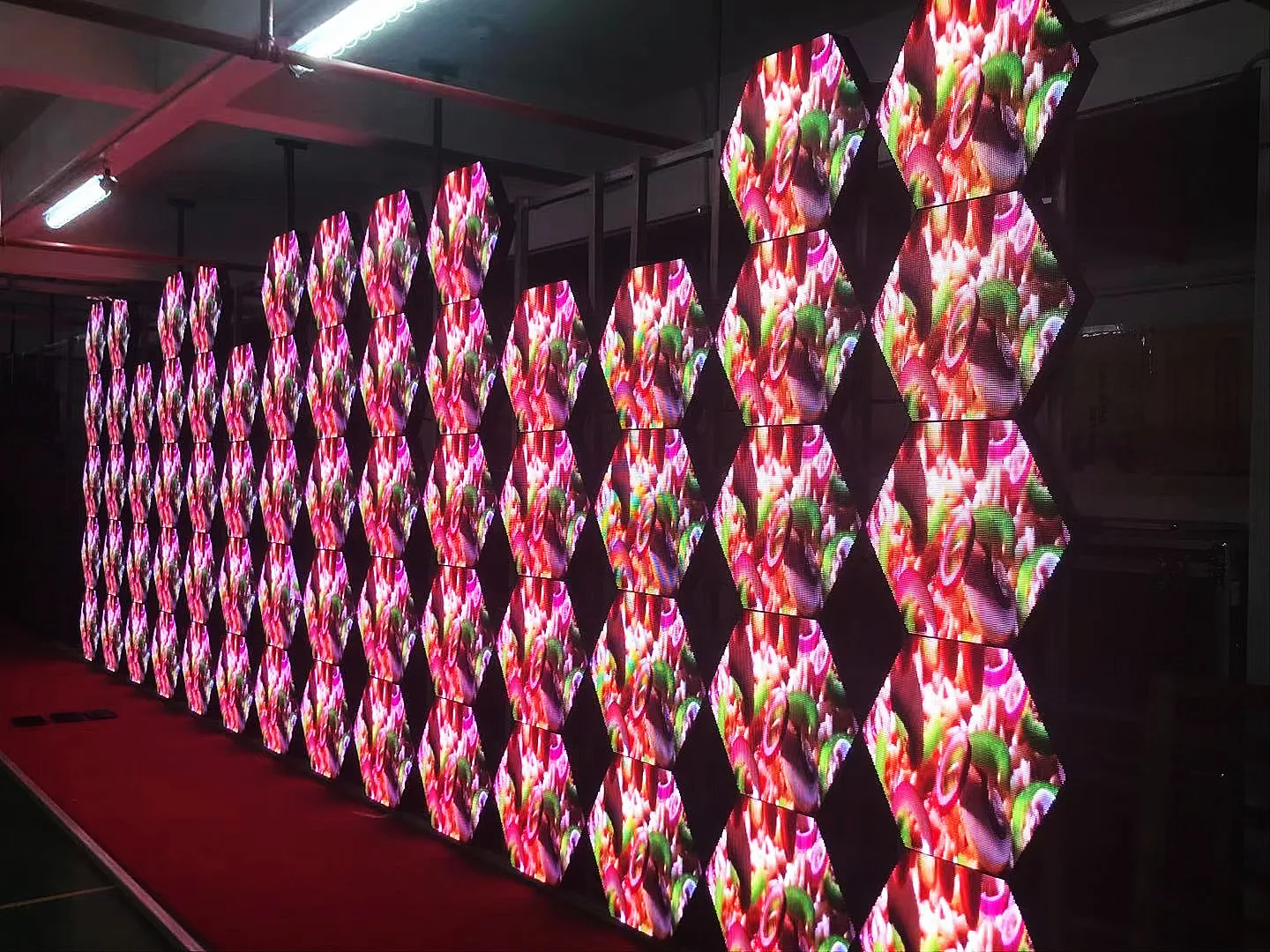

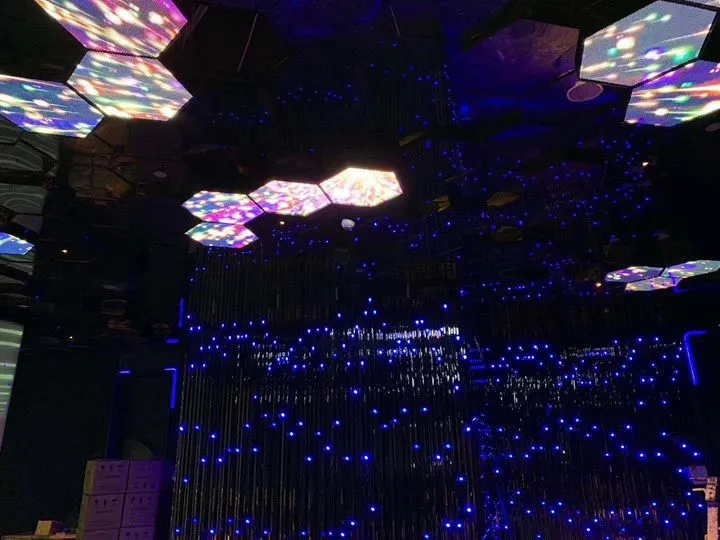

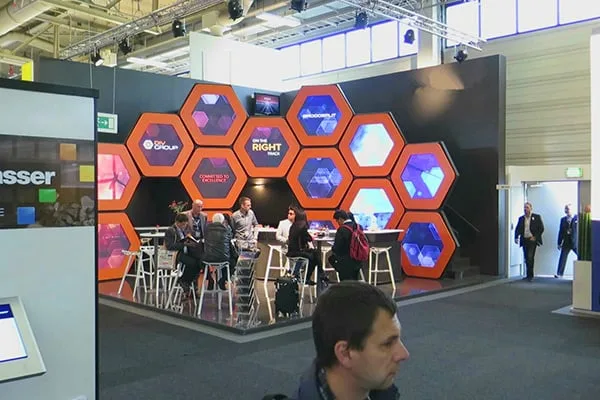

04. Various Applications Hexagon led video display is perfect for all kinds of events, shopping mall, front desk, company decoration and etc. It's also perfect for club and stage's lighting effect with hexagon led screen. With small sizes hexagonal led display, we can make it together for one big screen.
	05. Various Pitch and Flexible Sizes We have various pitch options for our hexagon led display, such as 2mm, 2.5mm, 3mm, 4mm, 5mm for indoor applications; 3.2mm for outdoor applications. It also has flexible sizes available for our modular design.

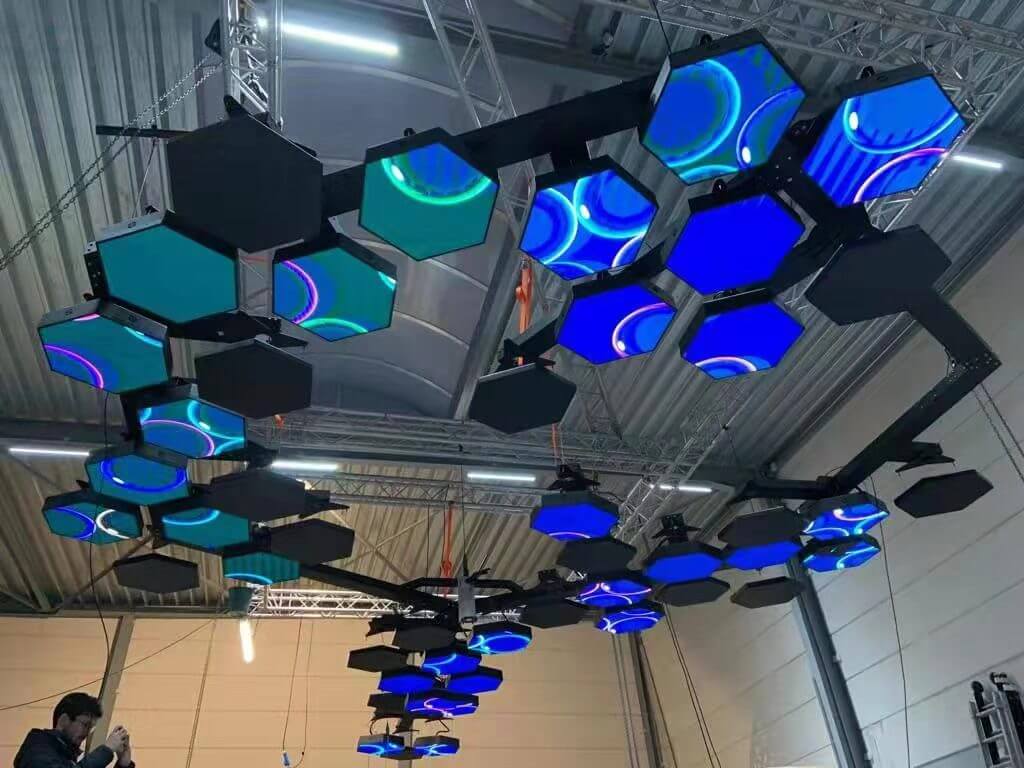

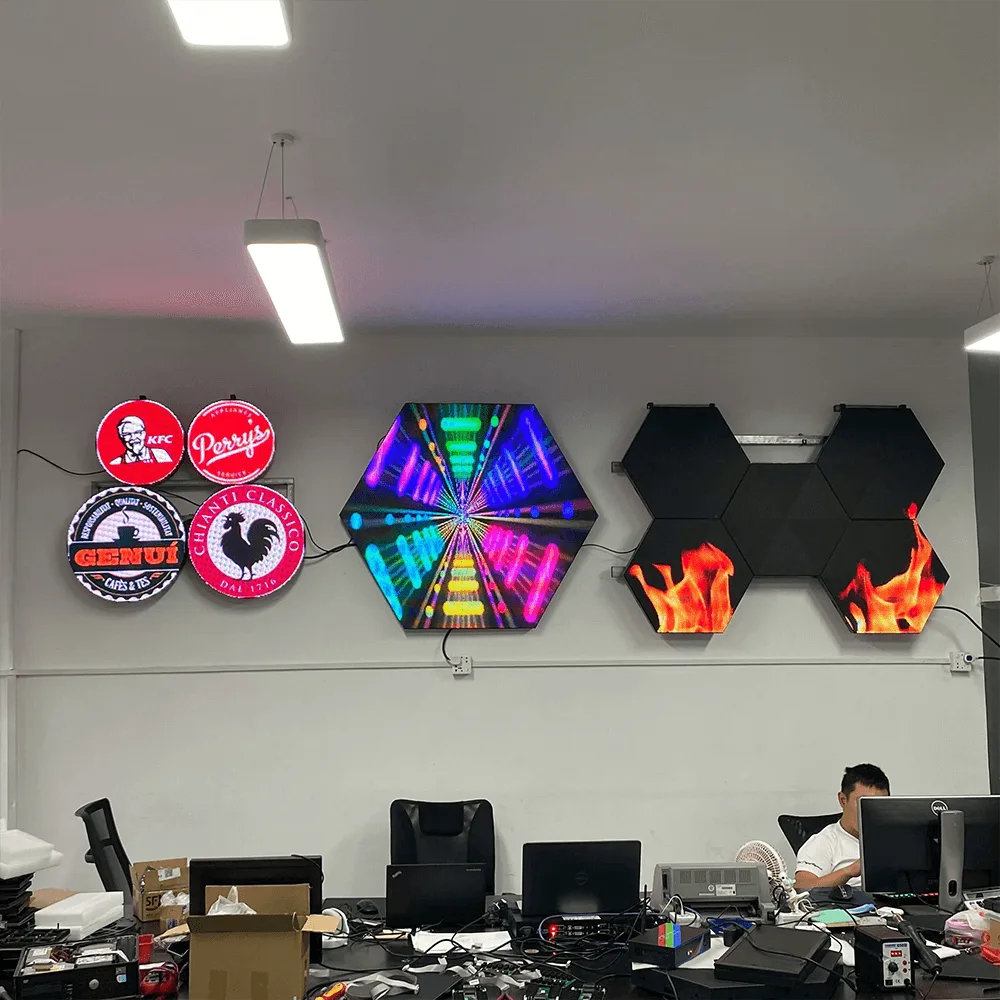

06. Flexible Installations Our hexagonal led display can be hanging and wall-mounted solutions. For hanging, it can be hang with hooks on the top or back side. For wall-mounted, it can reserve holes on the back side and mount on the wall with screws.

Parameter

Model	P2.5	P3	P4
Pixel Pitch	2.5mm	3mm	4mm
LED Type	SMD2121	SMD2121	SMD2121
Pixel Density	160,000 Pixels/㎡	111,111 Pixels/㎡	62,500 Pixels/㎡
Cabinet Size	320×320×58mm	576×576×58mm	300×300×58mm
Cabinet Material	Iron	Iron	Iron
Cabinet Weight	8kg	12kg	4.5kg
Brightness	800nits	1000nits	1000nits
Viewing Angle	H: 160°; V: 160°	H: 160°; V: 160°	H: 160°; V: 160°
Input Voltage	AC100-240V	AC100-240V	AC100-240V
Max. Power	550W/㎡	550W/㎡	550W/㎡
Ave. Power	200W/㎡	200W/㎡	200W/㎡
Working Temperature	-20℃～+50℃	'-20℃～+50℃	-20℃～+50℃
Working Humidity	10%—90%RH	10%—90%RH	10%—90%RH
Environment	Indoor	Indoor	Indoor
