What is LED Display Resolution and Pixel Pitch?

Views: 675 Author: Site Editor Publish Time: Origin: Site

LED displays are ubiquitous in modern visual communication, used in everything from advertising billboards to intricate stage designs. Two critical factors that define the quality and clarity of an LED display are its resolution and pixel pitch. Understanding these concepts is essential for making informed decisions when selecting or working with LED displays.

What is LED Display Resolution?

Resolution refers to the number of distinct pixels that can be displayed on the screen, both horizontally and vertically. For example, a display with a resolution of 1920x1080 can show 1920 pixels horizontally and 1080 pixels vertically, totaling over sharper image, especially when viewed from a close distance.

In the context of LED displays, resolution is determined by the total number of pixels the display can show. This is often a critical consideration for applications like digital signage, where content needs to be displayed in high detail, or large outdoor screens where viewers might be far away. The resolution is usually expressed as the product of the number of pixels horizontally and vertically (e.g., 3840x2160 for a 4K display).



What is Pixel Pitch?

Pixel pitch, also known as dot pitch or P-value, is the distance between the centers of two adjacent pixels on an LED display. It is measured in millimeters (mm). The smaller the pixel pitch, the closer the pixels are to each other, resulting in a higher pixel density and, consequently, a higher resolution for a given screen size.

For example, a display with a pixel pitch of 1.5mm has pixels that are closer together than a display with a pixel pitch of 3mm. As a result, the 1.5mm pixel pitch display will have a sharper and more detailed image, especially when viewed from up close. This is particularly important in applications like indoor displays, where viewers are typically closer to the screen.

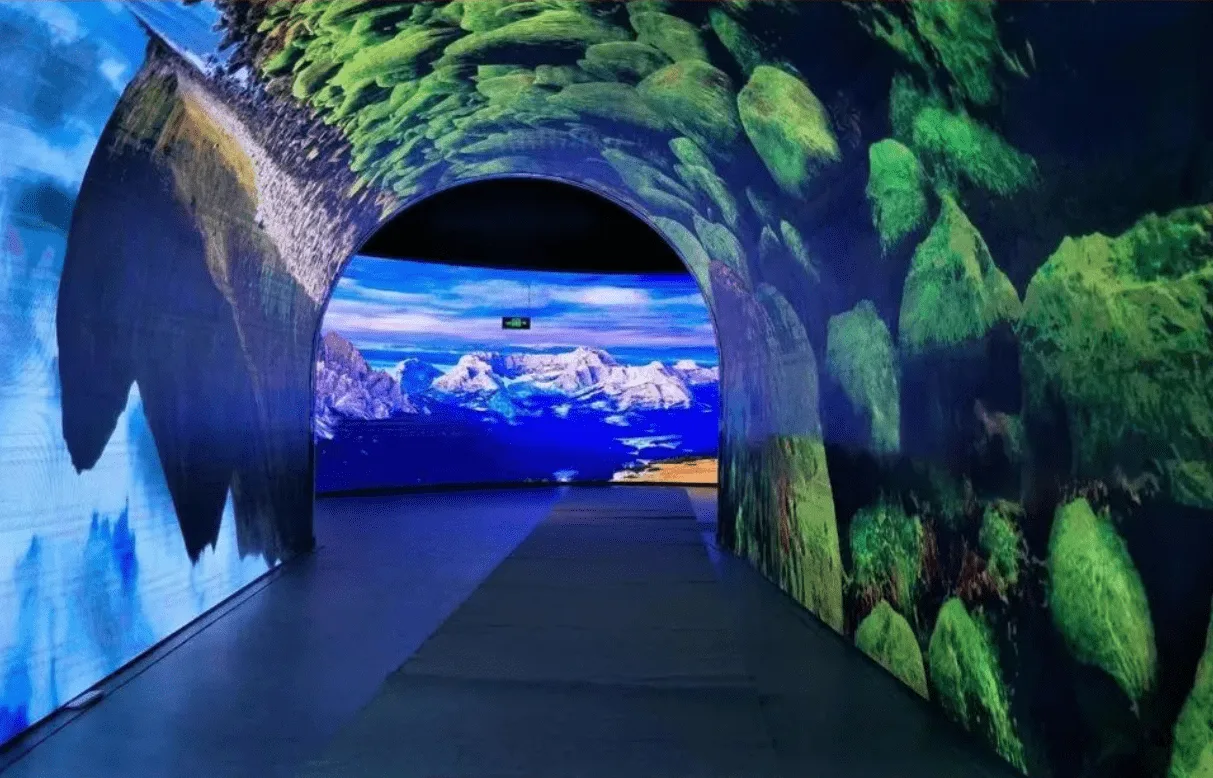

微信图片_20240904114903 (1).png


The Relationship Between Resolution and Pixel Pitch

While resolution and pixel pitch are related, they are not the same. Resolution is a function of the total number of pixels in the display, whereas pixel pitch refers to the spacing of those pixels. A larger display with the same resolution as a smaller one will have a larger pixel pitch, meaning the pixels are spaced further apart. Conversely, a smaller pixel pitch allows more pixels to be packed into the same area, increasing the resolution.

For instance, a large outdoor LED screen might have a relatively low resolution due to a larger pixel pitch, which is acceptable since it is typically viewed from a greater distance. On the other hand, an indoor LED display with a smaller pixel pitch will have a higher resolution, providing clearer and more detailed images for close-up viewing.

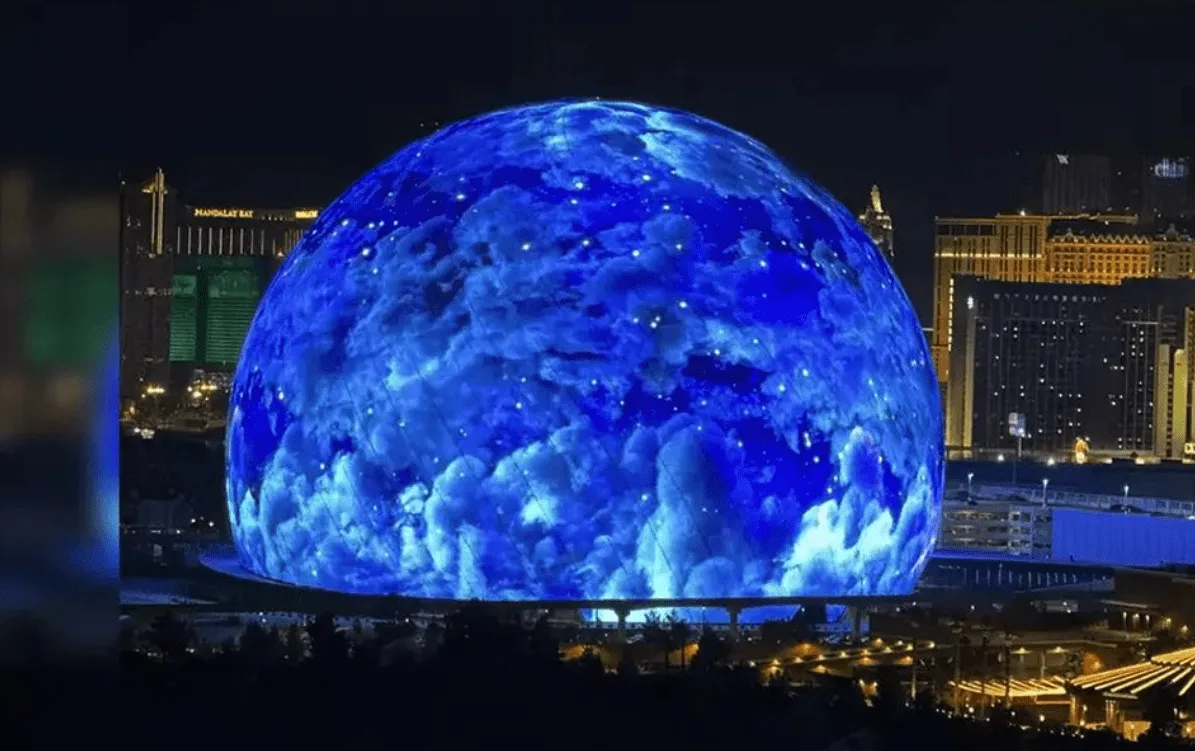

微信图片_20240904115132 (1).png

Importance of Choosing the Right Resolution and Pixel Pitch

Selecting the right resolution and pixel pitch for an LED display depends on several factors, including the viewing distance, the type of content to be displayed, and the size of the screen. For instance, a high-resolution display with a small pixel pitch is ideal for environments where viewers are close to the screen, such as control rooms or retail environments. Conversely, larger pixel pitches may be suitable for outdoor billboards where the viewing distance is much greater.

Moreover, while higher resolution and smaller pixel pitch generally provide better image quality, they also come at a higher cost. Therefore, it's important to balance the need for image clarity with budget constraints and the intended use of the display.

Conclusion

Understanding LED display resolution and pixel pitch is crucial for making informed decisions when selecting or working with LED displays. The resolution defines the overall clarity and detail of the image, while the pixel pitch determines the pixel density and viewing experience. By carefully considering these factors, you can choose the right LED display for your specific needs, ensuring optimal visual performance and viewer satisfaction.
